Gas Sterilization of Beverage Packaging: Innovation by Vessl Inc
BEVERAGESSUSTAINABILITY
This is an AI generated illustration and does not represent actual product or service.
In the world of consumable liquid products, such as beverages and liquid foods, ensuring sterility during packaging is critical to meet regulatory standards and maintain product quality. Traditional sterile packaging methods, like aseptic filling, cold filling, and hot filling, each have their limitations, particularly when it comes to low-volume products or containers with complex shapes. Addressing these challenges, Vessl Inc. has developed an innovative sterile filling method that enhances efficiency, reduces costs, and ensures compliance with stringent packaging regulations. This innovation is particularly suited for low-volume additive product containers, such as those used for liquid or powdered additives in beverages.
The Challenge of Sterile Packaging
Sterile packaging is essential to prevent contamination and extend the shelf life of consumable products. Traditional methods face several challenges:
1. Hot Filling Limitations: Hot filling processes, which sterilize both the product and the container by filling the container with a heated liquid, struggle with low-volume products. The small amount of liquid cools too quickly to effectively sterilize the container’s inner surfaces.
2. Chemical Sterilization Drawbacks: Aseptic and cold filling processes often rely on chemical sterilization, which can introduce unwanted residues or require additional steps, increasing complexity and cost.
3. Energy Inefficiency: High-temperature sterilization can damage sensitive products or containers, while also consuming significant energy.
Vessl Inc.’s patent-pending sterile filling method addresses these issues by combining thermal and mechanical sterilization techniques, ensuring efficient and cost-effective packaging without compromising product quality.
The Vessl Inc. Solution: A Multi-Stage Sterile Filling Method

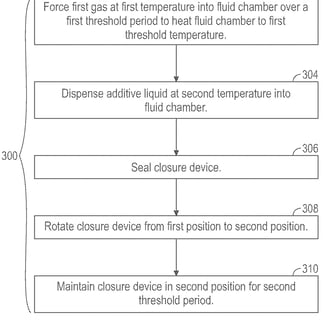

Vessl Inc.’s method is a multi-stage process designed to sterilize both the additive product and its container efficiently. Here’s how it works:
Stage 1 - Gas Sterilization: A first gas (e.g., sterilized air or nitrogen) is forced into the product chamber at a high temperature (e.g., 153–157°C) for a set period (e.g., 45–50 seconds). This heats the inner surfaces of the container to a sterilizing temperature (e.g., 139–141°C), ensuring complete sterilization without the need for chemicals.
Stage 2 - Product Dispensing: The additive product (e.g., a liquid or powder) is dispensed into the sterilized product chamber at a second temperature (e.g., 84–95°C). The pre-heated container helps maintain the product’s temperature, ensuring it remains sterile during filling.
Stage 3 - Sealing and Pressurization: The product chamber is sealed using a sealing member (e.g., a plug or cap) to create an airtight seal. Optionally, the chamber is pressurized (e.g., to 110 psi) to extend the product’s shelf life and enhance stability.
Stage 4 - Rotation for Additional Sterilization: The container is rotated (e.g., 180 degrees) to ensure the additive product comes into contact with the sealing member. The container is held in this position for a set period (e.g., 20 seconds) to sterilize the sealing member through contact with the hot additive product.
Key Advantages of Vessl Inc.’s Method
1. Efficient Sterilization Without Chemicals: By using heated gas and the additive product itself for sterilization, the method eliminates the need for chemical sterilants, reducing costs and avoiding potential residues.
2. Ideal for Low-Volume Products: The method is particularly effective for small containers, where traditional hot filling processes struggle to maintain sterilization temperatures.
3. Energy Efficiency: The use of precise temperature control and gas sterilization reduces energy consumption compared to high-temperature methods.
4. Enhanced Product Quality: The controlled sterilization process minimizes the risk of product damage, ensuring the additive product retains its quality and efficacy.
5. Versatility: The method can be applied to a wide range of products and container types, including liquids, powders, and complex container designs.
Applications of the Sterile Filling Method
Vessl Inc.’s sterile filling method is ideal for:
1. Beverage Additives: Liquid or powdered additives for beverages, such as flavorings, vitamins, or probiotics, can be packaged efficiently and safely.
2. Pharmaceuticals: The method ensures sterile packaging of liquid or powdered pharmaceutical additives, meeting stringent regulatory requirements.
3. Food Products: Low-volume liquid or powdered food additives, such as sauces or seasonings, can benefit from this efficient and cost-effective packaging solution.
Vessl Inc.’s innovative sterile filling method represents a significant advancement in the packaging of consumable liquid and powdered products. By combining thermal and mechanical sterilization techniques, the method addresses the limitations of traditional packaging processes, offering a more efficient, cost-effective, and versatile solution. This innovation is particularly valuable for low-volume products, where maintaining sterility and product quality is often challenging.
